| SPECIFICATION |
| OVERALL LENGTH(mm) |
8,502 |
| OVERALL WIDTH (mm) |
2,490 |
| OVERALL HEIGHT (mm) |
1,867 |
| TREAD (mm) |
FRONT |
2,050 |
| REAR |
1,853 |
| OVERHANG (mm) |
FRONT |
2,230 |
| REAR |
3,063 |
| WHEEL BASE (mm) |
3,000 |
| ENGINE |
MODEL |
DV15TIS |
| HORSE POWER(ps) |
390 |
| TORQUE(kg.m) |
160 |
| DISPLACEMENT(cc) |
14,618 |
| MIN TURNING RADIUS (m) |
10.2 |
| FUEL TANK (L) |
400L |
| SUSPENSION |
FRONT/REAR |
WIDE AIR SPRING |
| TIRE |
FRONT/REAR |
12R 22.5-16PR |
|
|
|

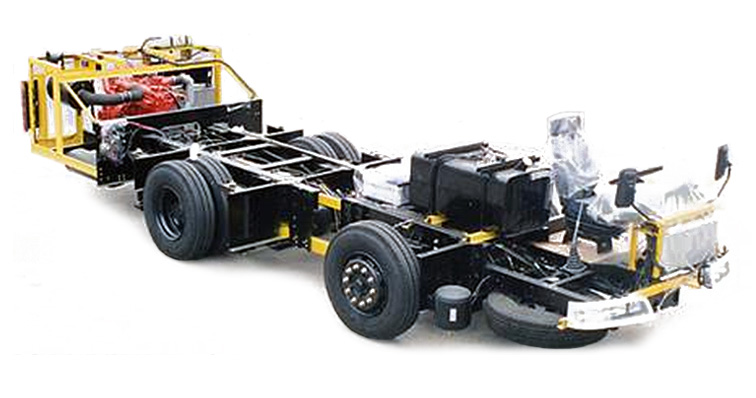

BH120F
